Intelligent CNC Laser Cutting and Grooving Integrated Machine
Intelligent CNC Laser Cutting and Grooving Integrated Machine

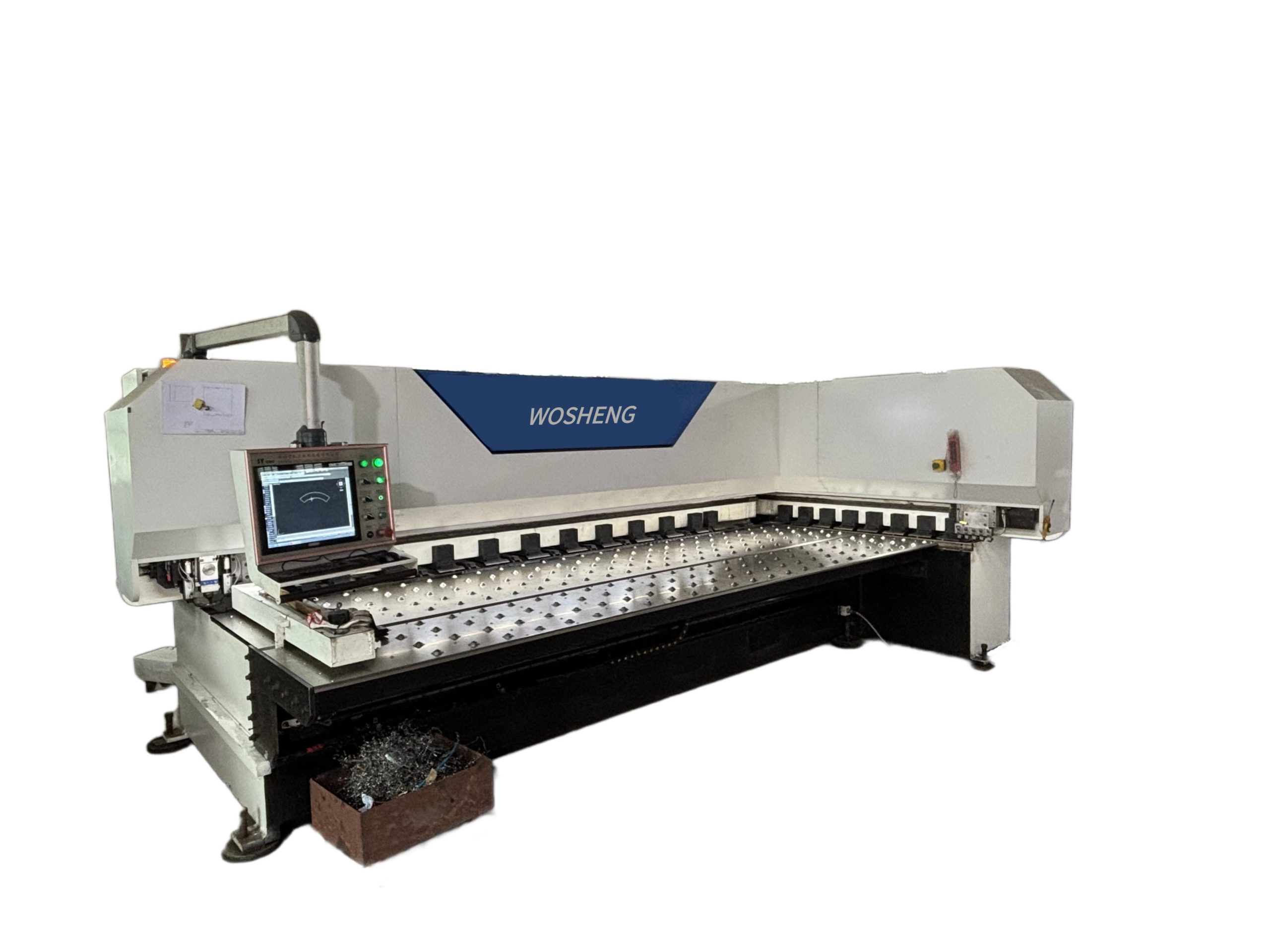

The Intelligent CNC Laser Cutting and Grooving Integrated Machine is a multifunctional processing center designed for automatic four-side grooving, laser cutting, chamfering, slotting, and precision sheet metal fabrication. It integrates CNC automation, intelligent nesting, and high-precision processing for stainless steel, aluminum, galvanized sheets, and decorative metal fabrication industries.
The Intelligent Four-Side Grooving Laser Cutting Processing Center is an advanced composite manufacturing system that integrates four-side V-grooving and fiber laser cutting into one intelligent CNC machine. It is specially designed for decorative sheet metal processing, stainless steel customization, precision cabinet manufacturing, aluminum panel fabrication, and intelligent metal processing industries.
The machine supports automatic processing of irregular shapes, multi-hole structures, square holes, circular holes, slotting, chamfering, trimming, and precision cutting. It replaces traditional multi-step production processes such as:
- Sheet shearing
- Punching
- Edge trimming
- Multiple positioning
- Secondary handling
The integrated CNC automation system significantly improves processing efficiency, reduces labor costs, increases accuracy, and minimizes material waste.
I. Intelligent CNC & Automation Functions
Automatic Nesting
Import CAD/CAM drawings for:
- Automatic nesting
- Intelligent layout optimization
- Material utilization improvement by 10%–15%
One-Button Automatic Processing
Fully automated workflow:
- Automatic loading
- Hydraulic clamping
- Automatic positioning
- Four-side grooving
- Laser cutting
- Automatic unloading
Entire process operates with minimal manual intervention.
Automatic Clamping & Intelligent Avoidance
Hydraulic or vacuum clamping systems provide:
- Stable sheet fixing
- Automatic processing area avoidance
- Anti-collision protection
- Prevention of surface damage
Online Monitoring System
Real-time monitoring of:
- Tool wear
- Laser power
- Plate thickness
- Temperature status
Supports:
- Abnormality warning
- Automatic compensation
- Intelligent diagnostics
II. Key Technical Parameters (Typical)
| Parameter | Specification |
|---|---|
| Processing Materials | Stainless steel, cold rolled steel, aluminum plate, aluminum composite panel, copper, galvanized sheet |
| Plate Thickness Range | 0.5–20mm |
| Main Processing Range | 0.5–6mm |
| Working Table Size | 3000mm × 1500mm |
| Optional Table Size | 4m / 6m customizable |
| Grooving Type | V-groove (30°–60°) |
| Groove Depth | 0.1–2/3 of plate thickness |
| Positioning Accuracy | ±0.02mm |
| Repeat Positioning Accuracy | ±0.01mm |
| Laser Type | Fiber laser |
| Laser Power | 1000–3000W |
| Cutting Speed | 0–20m/min |
| Control System | Industrial CNC system |
| CNC Brands | Syntec / Fanuc |
| Operation Interface | Touchscreen + remote diagnostics |
III. Equipment Advantages Compared with Traditional Equipment
Multi-Process Integration
Replaces:
- Grooving machine
- Laser cutting machine
- Repeated transportation
- Multiple positioning operations
Processing workflow reduced by approximately 70%.
Higher Precision
Single clamping operation eliminates cumulative positioning errors.
Advantages include:
- Accurate bending angles
- Uniform gaps
- High assembly precision
- Reduced rework
Increased Efficiency
Single-part processing time reduced by more than 50%.
Suitable for:
- Small batch production
- Multi-variety manufacturing
- Customized production
Stable Product Quality
- Burr-free grooving
- Clean cutting edges
- No deformation on thin plates
- Finished product qualification rate above 99%
Labor & Space Saving
- One operator can manage multiple machines
- Reduced floor space by 40%
- Lower energy consumption
IV. Typical Application Industries
Stainless Steel Customization
- Cabinets
- Bathroom cabinets
- Niches
- Elevator cabins
- Decorative edging
Architectural Decoration
- Aluminum curtain walls
- Metal ceilings
- Special-shaped decorative components
- Metal doors and door frames
Home Appliance & Electronics
- Precision enclosures
- Control panels
- Cabinets
- Chassis
- Heat sinks
Metal Furniture
- Stainless steel tables
- Storage cabinets
- Display racks
- Advertising signs
Kitchen & Bathroom Industry
- Stainless steel sinks
- Bathroom hardware
- Commercial kitchen equipment
V. Standard Processing Workflow
Drawing Import
- Import CAD/CAM files
- Automatic nesting
- Set groove depth
- Set groove angle
- Configure cutting parameters
Automatic Loading
- Full sheet loading
- Automatic positioning
- Hydraulic clamping
Four-Side Grooving
- X/Y direction grooving
- Four-side V-grooving
- Automatic tool changing
- Automatic rotation
Laser Cutting
- Precision contour cutting
- Hole cutting
- Edge trimming
Automatic Unloading & Sorting
- Finished product output
- Waste separation
VI. Summary
The Intelligent Four-Side Grooving Laser Cutting Processing Center is a core intelligent manufacturing solution for decorative sheet metal, stainless steel customization, and precision enclosure fabrication industries.
Through integrated processing, CNC automation, and high-precision manufacturing technology, the machine reconstructs traditional production workflows to achieve:
- Higher efficiency
- Better product quality
- Lower production costs
- Intelligent customized manufacturing
It is an ideal equipment choice for industrial upgrading and modern customized metal fabrication production.
Frequently Asked Questions
What is a four-side grooving laser cutting processing center? How is it different from a standard laser cutting machine?
Standard laser cutting machines only perform 2D sheet cutting such as outer contours and inner holes.
The four-side grooving processing center can additionally perform V-grooving, chamfering, and milling on sheet metal edges. The grooving function allows precise bending and forming without secondary positioning, making it ideal for precision sheet metal manufacturing and stainless steel decorative panel production.
What processing accuracy can the machine achieve?
Laser cutting positioning accuracy: ±0.03mm / 500mm
Grooving repeat positioning accuracy: ±0.01mm
Minimum groove depth control: 0.01mm level
Accuracy is affected by guide rail alignment, servo encoder feedback precision, and environmental temperature changes.
How should the remaining material thickness be set during grooving?
Recommended remaining thickness is generally 20%–30% of the total sheet thickness.
If too thin, the sheet may crack during bending.
If too thick, bending resistance increases and bending accuracy decreases.
Why do stainless steel cutting surfaces become black or produce slag?
Stainless steel cutting requires high-purity nitrogen gas. Using oxygen or low-purity nitrogen may cause oxidation and black edges.
Improper laser focus positioning or contaminated lenses may also reduce cutting quality and should be checked regularly.
Why does the cutting head sometimes collide with the metal sheet during processing?
Uneven sheet deformation
Incorrect nozzle height settings
Servo response problems
Damaged ceramic rings
Proper sheet fixing, nozzle distance adjustment, and regular maintenance can effectively reduce collision risks.
